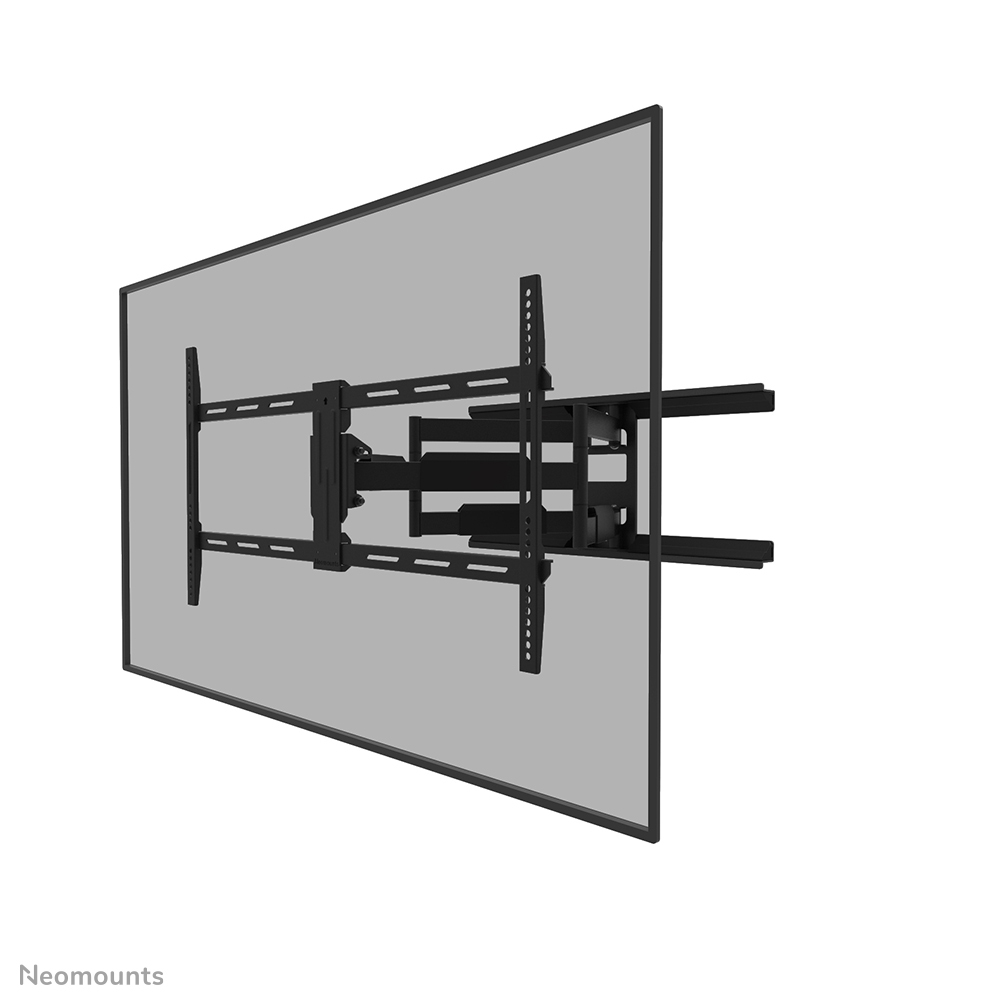

The Neomounts WL40-550BL18 LEVEL is a full motion wall mount for flat screens up to 75" with a maximum weight capacity of 45 kg. The versatile tilt (18°) and swivel (54°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation. \nThe LEVEL-550 wall mount has a depth of 5,5-71 cm and is suitable for screens that meet VESA hole pattern 200x100 to 800x400 mm. \nThe WL40-550BL18 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. The mount is equipped with cable management, to secure any loose cables on the back of the screen.
Height
- 436 mm
Quantity per pack
- 1 pc(s)
Package width
- 882 mm
Package depth
- 340 mm
Package height
- 65 mm
Country of origin
- China
Harmonized System (HS) code
- 7326909890
Package net weight
- 11.7 kg
Swivel angle range
- 0 - 54°
Housing material
- Steel
Distance to the wall (max)
- 71 cm
Width
- 850 mm
Depth
- 55 mm
Lockable
- Not lockable
Distance to the wall (min)
- 5.5 cm
Mounting kit
- Yes
Pivot angle
- -3 - 3°
Product Colour
- Black
Angle of rotation
- 6°
Rotating
- Yes
Swivel angle
- 54°
Swivelling
- Yes
Tilt angle range
- -3 - 15°
Tilt adjustment
- Yes
Height adjustment
- No
Panel mounting interface
- 200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,680 x 300,800 x 200,800 x 400
Number of displays supported
- 1
Minimum screen size
- 109.2 cm (43")
Mounting type
- Wall
Maximum screen size
- 190.5 cm (75")
Maximum weight capacity
- 45 kg
Cable Management
- Yes
Brand
- Neomounts
