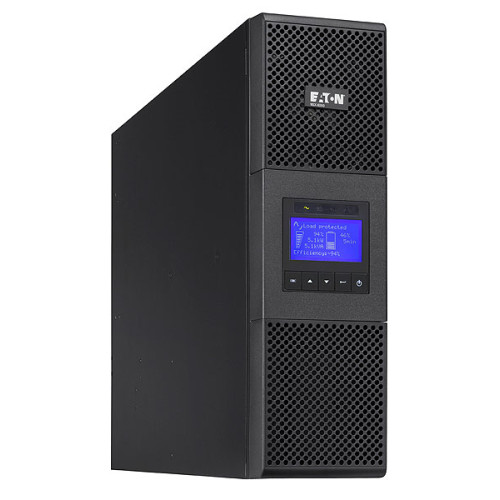

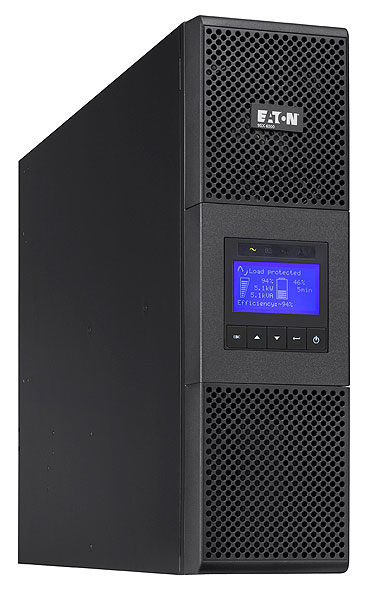

Eaton 9SX UPS, 5000 VA, 4500 W, Input: Hardwired, Tower.
Output Operation Voltage (Max)
- 240 V
Waveform
- Sine
Nominal Input Voltage
- 230 V
Nominal Output Voltage
- 230 V
Output Power
- 4500 W
Battery Voltage
- 12 V
Charging Current
- 90 A
Efficiency
- 94.2%
Input Operation Voltage (Max)
- 276 V
Input Operation Voltage (Min)
- 176 V
Serial Interface
- Yes
UPS Topology
- Double-conversion (Online)
Display Type
- LCD
Output Operation Voltage (Min)
- 200 V
Hot-swap Battery
- Yes
Number of Input Phases
- 1
Number of Output Phases
- 1
Output Frequency
- 50/60 Hz
Output Power Capacity
- 5 kVA
Output Voltage Regulation
- 3%
Input Power Factor
- 99
Output Power Factor
- 0.9
Output Voltage Total Harmonic Distortion (THD)
- 3%
MPN
- 9SX5KI
Certification
- IEC/EN 62040-1, IEC/EN 62040-2, CE, EAC
Product Colour
- Black
Quantity per pack
- 1 pc(s)
Height
- 575 mm
Width
- 244 mm
Depth
- 542 mm
Weight
- 65.5 kg
USB port
- Yes
Operating temperature (T-T)
- 0 - 40 °C
Operating relative humidity (H-H)
- 0 - 96%
Cables included
- Serial, USB cable
Operating altitude
- 0 - 3000 m
Noise Level
- 46 dB
Compliance Certificates
- CE
Auto Power Off
- Yes
Battery Technology
- Sealed Lead Acid (VRLA)
Battery Capacity
- 7 Ah
Input Frequency
- 40 - 70 Hz
Response Time
- 500 ms
Serial Interface Type
- RS-232
Form Factor
- Tower
Quick Installation Guide
- Yes
Brand
- Eaton
