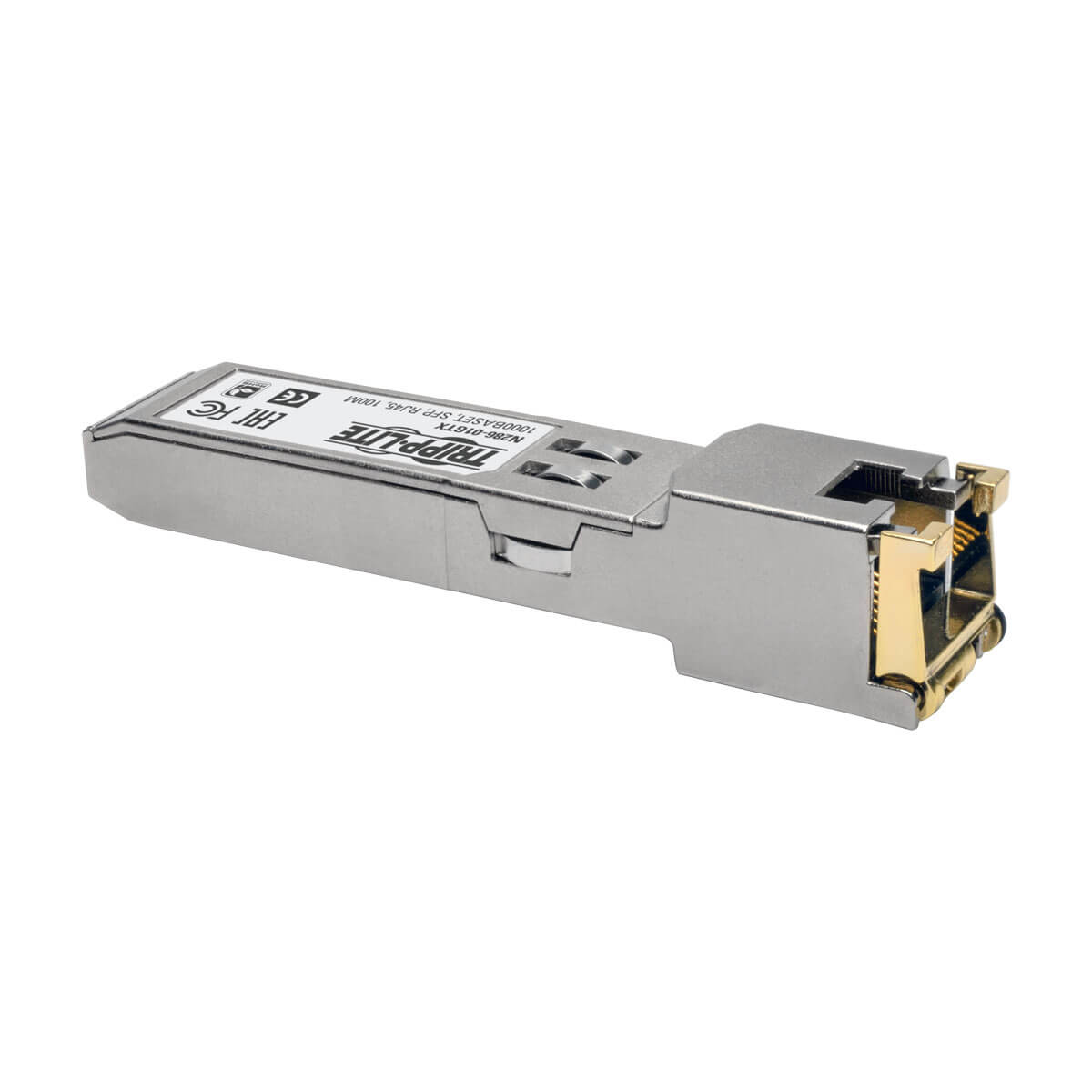

The N286-01GTX Cisco GLC-T Compatible 1000Base-TX Copper RJ45 SFP Mini Transceiver with an RJ45 Ethernet connector functions just like the Cisco® GLC-T transceiver module and is designed to operate with Cisco networking equipment. It also meets or exceeds the GLC-T's original specifications and complies with MSA standards.
This 1000Base-TX copper transceiver is fully hot-pluggable, so you can install it without shutting down the network or rebooting your device. It supports data transfer rates up to 1 Gbps with auto-negotiation up to 328.08-ft. (100 m) and automatic MDI/MDI-X crossover support. Its metallic housing allows low EMI and power dissipation. It supports up to 1.25 Gbps bi-directional communication.
This 1000Base-TX copper transceiver is fully hot-pluggable, so you can install it without shutting down the network or rebooting your device. It supports data transfer rates up to 1 Gbps with auto-negotiation up to 328.08-ft. (100 m) and automatic MDI/MDI-X crossover support. Its metallic housing allows low EMI and power dissipation. It supports up to 1.25 Gbps bi-directional communication.
Package weight
- 50 g
MPN
- N286-01GTX
Master (Outer) Case GTIN (EAN/UPC)
- 10037332197419
Single-Mode Fiber (SMF) Supported
- No
SFP Transceiver Type
- Copper
Multi-Mode Fiber (MMF) Supported
- No
Hot-Plug Support
- Yes
Interface Type
- SFP+
Compliance Certificates
- RoHS
Storage temperature (T-T)
- -40 - 85 °C
Maximum transfer distance
- 100 m
Maximum data transfer rate
- 1000 Mbit/s
Operating relative humidity (H-H)
- 10 - 85%
Operating temperature (T-T)
- 0 - 70 °C
Brand compatibility
- Cisco
Weight
- 20 g
Depth
- 569 mm
Width
- 132 mm
Height
- 84 mm
Harmonized System (HS) code
- 85369010
Country of origin
- China
Package height
- 27.9 mm
Package depth
- 55.9 mm
Package width
- 116.8 mm
Quantity per pack
- 1 pc(s)
Product Colour
- Metallic
Brand
- Tripp Lite
