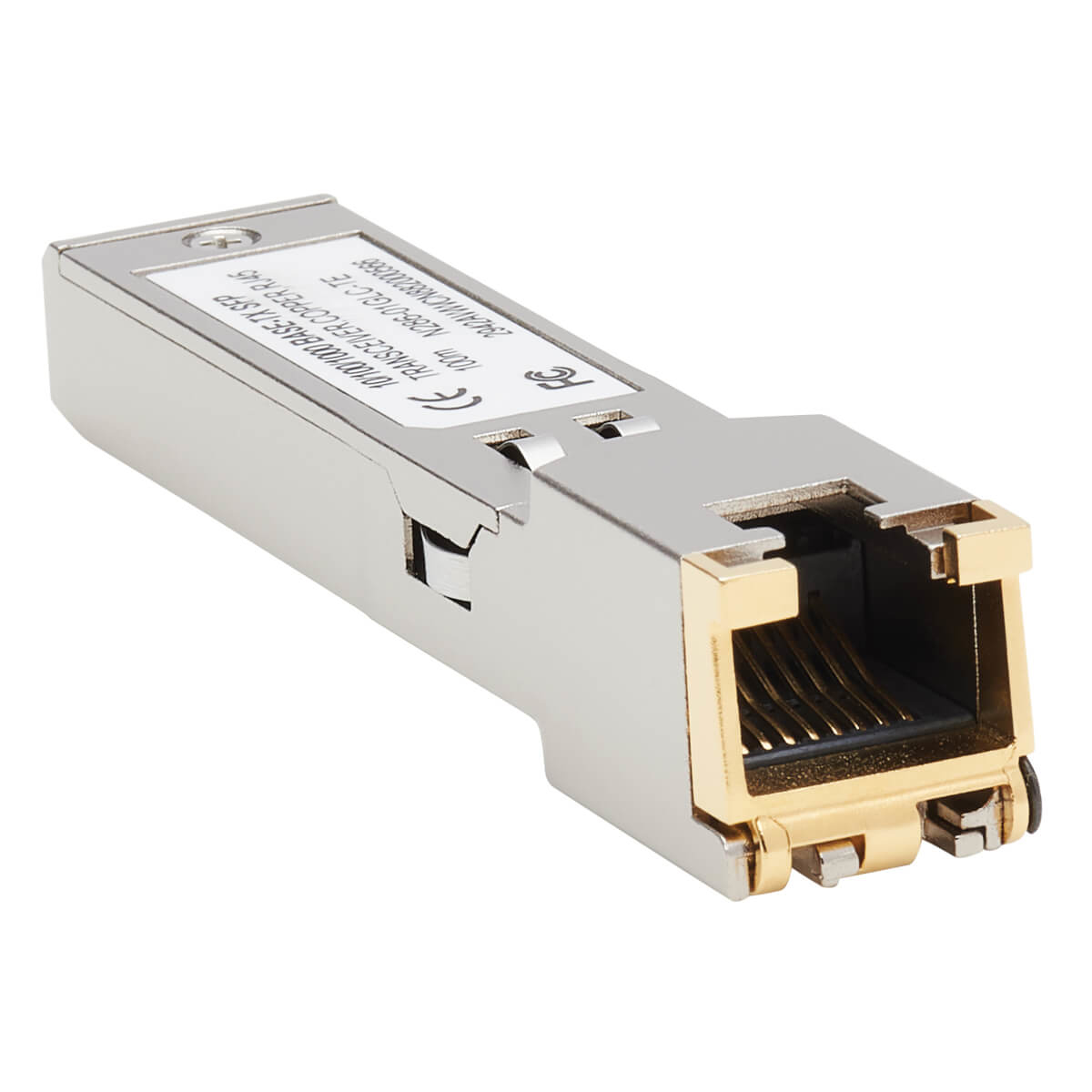

SFP Transceiver for Connecting Copper Cabling to Your Cisco Network Switch or Router
This SFP transceiver allows you to connect a copper Cat6 cable to a 10/100/1000 Mbps fiber network router, server or switch. It transmits data up to 328.08-ft. (100 m) and supports bi-directional Gigabit Ethernet communication up to 1.25 Gbps.
Functionally Equivalent to Cisco GLC-TE Transceiver Module
The MSA-compliant N286-01GLC-TE functions just like the equivalent Cisco GLC-TE transceiver module and is manufactured to meet or exceed Cisco specifications. You can use this transceiver with any compatible Cisco router, server or switch and receive the same performance as the GLC-TE.
Hot-Swappable for Installation Without Network Interruption
This input/output device is fully hot-swappable, so you can install it without a potentially costly 10/100/1000 Mbps network shutdown or device reboot. Just plug the SFP end of the transceiver into your Cisco network device. The other end has an RJ45 connector to link with high-speed Cat6 patch cable (sold separately). A convenient bail clasp latch helps you carefully remove the module from the device.
Premium Features for Superior Performance
The auto-sensing RJ45 port supports auto-negotiation and automatic MDI/MDI-X crossover to match the other end of the connection. The transceiver's zinc housing protects against electromagnetic interference (EMI) and excessive power dissipation.
This SFP transceiver allows you to connect a copper Cat6 cable to a 10/100/1000 Mbps fiber network router, server or switch. It transmits data up to 328.08-ft. (100 m) and supports bi-directional Gigabit Ethernet communication up to 1.25 Gbps.
Functionally Equivalent to Cisco GLC-TE Transceiver Module
The MSA-compliant N286-01GLC-TE functions just like the equivalent Cisco GLC-TE transceiver module and is manufactured to meet or exceed Cisco specifications. You can use this transceiver with any compatible Cisco router, server or switch and receive the same performance as the GLC-TE.
Hot-Swappable for Installation Without Network Interruption
This input/output device is fully hot-swappable, so you can install it without a potentially costly 10/100/1000 Mbps network shutdown or device reboot. Just plug the SFP end of the transceiver into your Cisco network device. The other end has an RJ45 connector to link with high-speed Cat6 patch cable (sold separately). A convenient bail clasp latch helps you carefully remove the module from the device.
Premium Features for Superior Performance
The auto-sensing RJ45 port supports auto-negotiation and automatic MDI/MDI-X crossover to match the other end of the connection. The transceiver's zinc housing protects against electromagnetic interference (EMI) and excessive power dissipation.
Hot-Swap
- Yes
Ethernet interface type
- Fast Ethernet, Gigabit Ethernet
Auto MDI/MDI-X
- Yes
Maximum transfer distance
- 100 m
Storage temperature (T-T)
- -40 - 85 °C
Storage relative humidity (H-H)
- 5 - 85%
Copper Ethernet Cabling Technology
- 10BASE, 100BASE, 1000BASE
Compliance Certificates
- RoHS
Maximum Operating Temperature
- 70 °C
Maximum data transfer rate
- 1000 Mbit/s
Interface Type
- SFP
Multi-Mode Fiber (MMF) Supported
- No
SFP Transceiver Type
- Copper
Single-Mode Fiber (SMF) Supported
- No
SFP Transceiver Standard
- TX
Master (Outer) Case GTIN (EAN/UPC)
- 10037332248975
MPN
- N286-01GLC-TE
Minimum Operating Temperature
- 0 °C
Width
- 13.5 mm
Product Colour
- Silver
Quantity per pack
- 1 pc(s)
Package width
- 144.8 mm
Package depth
- 78.7 mm
Package height
- 17.8 mm
Country of origin
- China
Harmonized System (HS) code
- 8517.62.0090
Height
- 8.4 mm
Depth
- 68.1 mm
Weight
- 50 g
Brand compatibility
- Cisco
Ethernet LAN
- Yes
Package weight
- 50 g
Operating temperature (T-T)
- 0 - 70 °C
Operating relative humidity (H-H)
- 5 - 85%
Brand
- Tripp Lite
