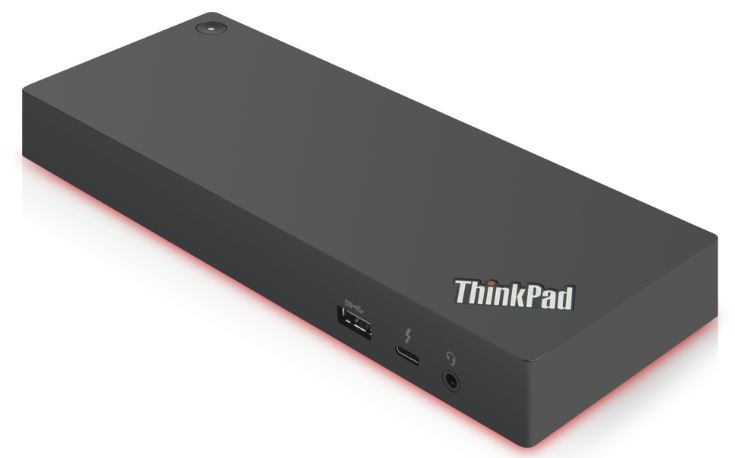

Maximize Your Productivity with a Thunderbolt 3 Dock. Powerful, versatile and incredibly fast! This Intel Thunderbolt™ Chipset powered Thunderbolt Dock Gen 2 invented to boost productivity with extended compatibility on both USB-C and Thunderbolt enabled laptop. Expand your horizons with multiple 4K displays, and transfer files at record speed.It’s everything you need to enhance your creativity and efficiency today.
Expand compatibility on USB-C and Thunderbolt systems: Dual UHD Displays provide the best video experience. Enhanced performance with professional video solutions and exclusive network manageability. The ThinkPad Thunderbolt 3 Dock Gen 2 is supported on the following Lenovo systems: ThinkPad X1 Yoga 2nd Gen (Machine Types: 20JD, 20JE, 20JF, 20JG); ThinkPad X1 Yoga 3rd Gen (Machine Types: 20LD, 20LE); ThinkPad T570 (Machine Types: 20H9, 20HA, 20JW, 20JX); ThinkPad P51s (Machine Types: 20HB, 20HC, 20JY, 20K0); ThinkPad T580 (Machine Types: 20L9, 20LA); ThinkPad P52s (Machine Types: 20LB, 20LC).
Expand compatibility on USB-C and Thunderbolt systems: Dual UHD Displays provide the best video experience. Enhanced performance with professional video solutions and exclusive network manageability. The ThinkPad Thunderbolt 3 Dock Gen 2 is supported on the following Lenovo systems: ThinkPad X1 Yoga 2nd Gen (Machine Types: 20JD, 20JE, 20JF, 20JG); ThinkPad X1 Yoga 3rd Gen (Machine Types: 20LD, 20LE); ThinkPad T570 (Machine Types: 20H9, 20HA, 20JW, 20JX); ThinkPad P51s (Machine Types: 20HB, 20HC, 20JY, 20K0); ThinkPad T580 (Machine Types: 20L9, 20LA); ThinkPad P52s (Machine Types: 20LB, 20LC).
USB 3.2 Gen 1 (3.1 Gen 1) Type-C Ports Quantity
- 1
Ethernet LAN Data Rates
- 10,100,1000 Mbit/s
Ethernet LAN (RJ-45) Ports
- 1
USB 2.0 Ports Quantity
- 0
AC Adapter Included
- Yes
Cable Lock Slot
- Yes
Power Supply
- 135 W
Card Reader Integrated
- No
HDM Ports Quantity
- 2
Headphone Outputs
- 0
Microphone In
- No
LED indicators
- Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
- 0
Plug and Play
- Yes
DisplayPorts Quantity
- 2
Maximum Digital Resolution
- 3840 x 2160 pixels
Host Interface
- Thunderbolt 3
Combo Headphone/Mic Port
- Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
- 5
Charging Function
- Yes
MPN
- 40AN0135UK
Compatibility
- ThinkPad X1 Yoga 2nd Gen, ThinkPad X1 Yoga 3rd Gen, Thinkpad T570 (20H9,20HA), Thinkpad T570 (20JW,20JX), Thinkpad P51s (20HB,20HC), Thinkpad P51s (20JY,20K0), Thinkpad T580 (20L9,20LA), ThinkPad P52s (20LB,20LC)
Product Colour
- Black
Quantity per pack
- 1 pc(s)
Package width
- 270 mm
Package depth
- 164 mm
Package height
- 75 mm
Harmonized System (HS) code
- 84733020
Height
- 30 mm
Width
- 220 mm
Depth
- 80 mm
Weight
- 525 g
Brand compatibility
- Lenovo
Ethernet LAN
- Yes
Package weight
- 1.4 kg
Windows operating systems supported
- Windows 10, Windows 7
Operating temperature (T-T)
- 0 - 40 °C
Operating relative humidity (H-H)
- 5 - 95%
Cables included
- Thunderbolt
Connectivity technology
- Wired
Brand
- Lenovo
