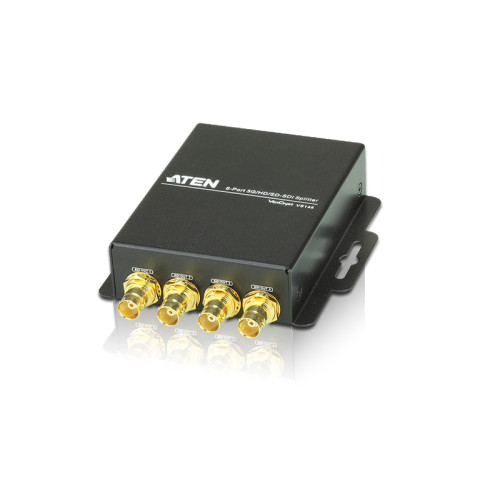

The VS146 6-Port 3G/HD/SD-SDI Splitter receives one SDI input and retransmits the signal to six SDI outputs for real time viewing across multiple displays. It provides automatic cable equalization and distributes the SD-SDI signal over 300 meters. The VS146 has the ability to re-clock SDI signals for cascading and thus provide even longer transmissions. It's particularly ideal for surveillance systems,TV studio, digital cinema, or any AV application where you need to split signals from a camera or other device equipped with 3G/HD/SD-SDI outputs to six SDI-compliant displays or video processors.
Compliance Certificates
- RoHS
MPN
- VS146
Video Ports Quantity
- 6
Video Out
- 6x BNC
DC-In Jack
- Yes
Maximum Operating Distance
- 300 m
Connector Contacts Plating
- Gold
Video Port Type
- BNC
AC Input Voltage
- 5 V
Storage temperature (T-T)
- -20 - 60 °C
Operating relative humidity (H-H)
- 20 - 90%
Operating temperature (T-T)
- 0 - 40 °C
Power consumption (typical)
- 10 W
Weight
- 310 g
Housing material
- Metal
Product Colour
- Black
Brand
- ATEN
