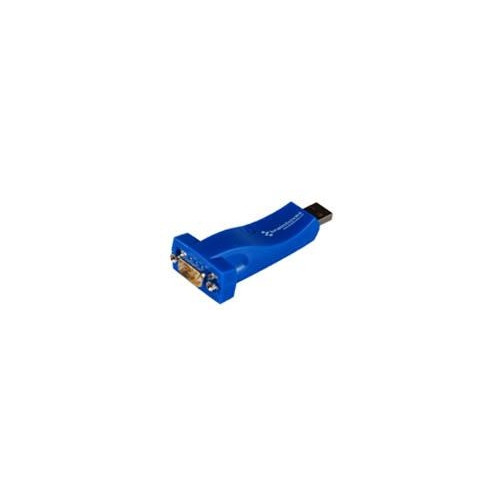

USB to Serial adapter providing one RS422/485 serial port. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 256 byte receive FIFOS, coupled with 1Mbit line drivers deliver uncompromising performance on your laptop/PC.
Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 10, Windows 8, Windows 7, Server 2008, Vista, Server 2003 and Windows XP with additional drivers for Raspberry Pi, Mac OS X and Linux. Lifetime warranty and support.
Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 10, Windows 8, Windows 7, Server 2008, Vista, Server 2003 and Windows XP with additional drivers for Raspberry Pi, Mac OS X and Linux. Lifetime warranty and support.
Compatible Operating Systems
- Win 7, Vista, XP
Package weight
- 133 g
Operating temperature (T-T)
- 0 - 60 °C
Cables included
- USB
Connectivity technology
- Wired
Certification
- CE, ROHS, WEEE
Full Duplex
- Yes
Compliance Certificates
- Federal Communications Commission (FCC), CE, UKCA
Mac Compatibility
- No
USB 2.0 Ports Quantity
- 1
USB version
- 2.0
Baud Rate
- 921.6 Kbit/s
Host Interface
- USB
Serial Ports Quantity
- 1
Connector(s)
- 1x RS422/485
Export Control Classification Number (ECCN)
- 4A994
Data Bits
- 7, 8
Parity Bit
- Even, Mark, No, Odd, Space
Stop Bits
- 1, 2
MPN
- US-324
Weight
- 23 g
Product Colour
- Blue
Quantity per pack
- 1 pc(s)
Package width
- 135 mm
Package depth
- 160 mm
Package height
- 49 mm
Harmonized System (HS) code
- 84718
Height
- 20 mm
Width
- 35 mm
Depth
- 89 mm
Cable length
- 0.25 m
Connector 1
- USB A
Connector 2
- DB9
Connector 1 gender
- Male
Connector 2 gender
- Male
Connector 1 form factor
- Straight
Connector 2 form factor
- Straight
Data transfer rate
- 0.48 Gbit/s
Brand
- Brainboxes
