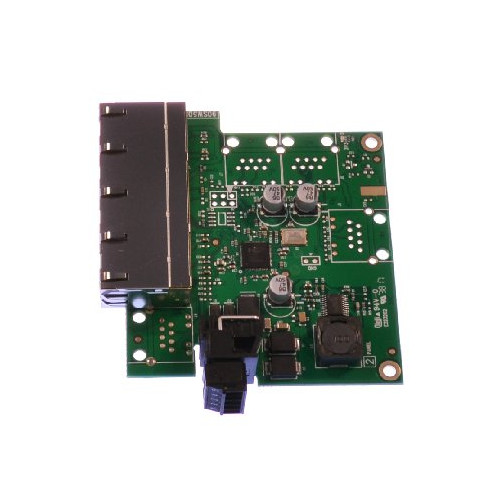

Industrial Embedded Ethernet 4 Port unmanaged switch. Galvanically Isolated Ethernet brainboxes-SW-104-front-panel-ethernet-port-status-leds capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for embedded applications.
Switch type
- Unmanaged
MPN
- SW-104
Export Control Classification Number (ECCN)
- 5A991.b
Form Factor
- Embedded
Power Source
- DC
Ethernet LAN Data Rates
- 10,100 Mbit/s
Rack Mounting
- No
Power over Ethernet (PoE)
- No
DC Input Voltage
- 5 - 30 V
MAC address table
- 1000 entries
10G support
- No
Basic switching RJ-45 Ethernet ports type
- Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity
- 4
Switch layer
- L2
Storage temperature (T-T)
- -40 - 85 °C
Operating temperature (T-T)
- -40 - 80 °C
Package weight
- 338 g
Power consumption (typical)
- 1.1 W
Weight
- 270 g
Depth
- 95 mm
Width
- 99 mm
Height
- 29 mm
Harmonized System (HS) code
- 851762
Package height
- 49 mm
Package depth
- 135 mm
Package width
- 160 mm
Product Colour
- Green
Brand
- Brainboxes
