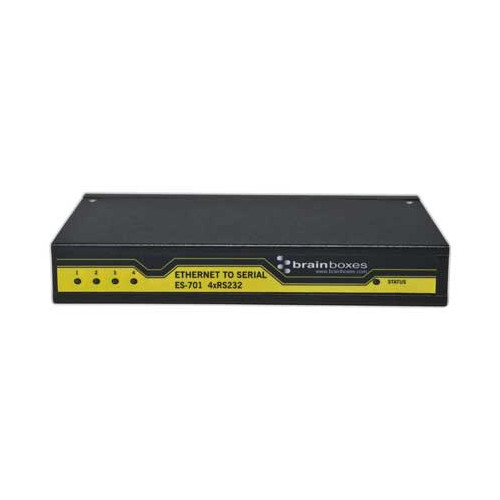

Ethernet to Serial device server providing access to four RS232 serial port. Data transfer rates up to 1,000,000 baud rates (1 MegaBaud), coupled with 1Mbit/s line drivers deliver uncompromising performance. Baud rates can be standard values such as 9,600, 115,200, 230,000, 921,600 or user definable non standard values.Our ES range provides simple instant networked serial ports. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser. For Windows our in-house designed (32 bit and 64 bit) driver gives you local COM ports, retaining existing software applications and allowing you to connect across your network to remote devices just as if they were attached locally. Serial Port Tunnelling (individually configurable) allows serial cable replacement over any distance, no software required. You can access the device via TCP/IP sockets from any networked device like an Android tablet, PC or phone. On Windows OS TCP/IP sockets are handled by the Winsock API, this will differ on other OSs.
LED indicators
- Status
MPN
- ES-701
Export Control Classification Number (ECCN)
- 5A991.b
Host Interface Gender
- Female
Output Interface
- RS-232
Serial Ports Quantity
- 4
Data Transfer Rate (Max)
- 0.1 Gbit/s
Host Interface
- RJ-45
External Power Adapter
- Yes
Quick Installation Guide
- Yes
Serial Interface Type
- DB9
Mac Compatibility
- No
Flow Control Support
- Yes
Compliance Certificates
- RoHS
Ethernet LAN (RJ-45) Ports
- 1
Certification
- EMC CE, WEEE, TAA, AEO C-TPAT
Internal
- No
Connectivity technology
- Wired
Windows operating systems supported
- Yes
Package weight
- 1.05 kg
Power consumption (typical)
- 1.35 W
Weight
- 959 g
Depth
- 300 mm
Width
- 135 mm
Height
- 80 mm
Harmonized System (HS) code
- 851762
Package height
- 80 mm
Package depth
- 260 mm
Package width
- 240 mm
Product Colour
- Black
Brand
- Brainboxes
