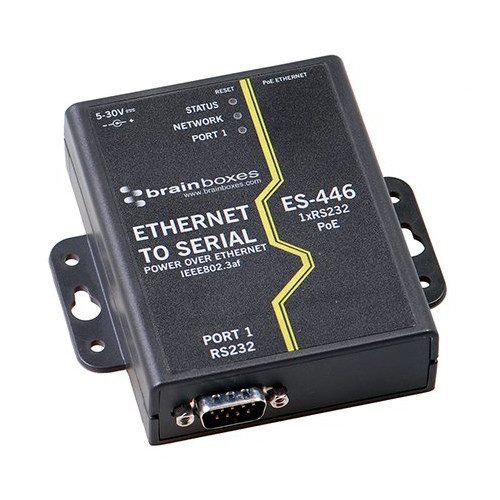

Ethernet to Serial device server with Power over Ethernet providing access to one RS232 serial port. Data transfer rates up to 1,000,000 baud (1 MegaBaud), coupled with 1Mbit/s line drivers deliver uncompromising performance. Baud rates can be standard values such as 9,600, 115,200, 230,000, 921,600 or user definable non standard values. Power over Ethernet (PoE) uses IEEE 802.3af standard, compatible with any PoE switch.
Our ES range provides simple instant networked serial ports. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser.
For Windows our in-house designed (32 bit and 64 bit) driver gives you local COM ports, retaining existing software applications and allowing you to connect across your network to remote devices just as if they were attached locally.
Serial Port Tunnelling (individually configurable) allows serial cable replacement over any distance, no software required. You can access the device via TCP/IP sockets from any networked device like an Android tablet, PC or phone. On Windows OS TCP/IP sockets are handled by the Winsock API, this will differ on other OSs.
Our ES range provides simple instant networked serial ports. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser.
For Windows our in-house designed (32 bit and 64 bit) driver gives you local COM ports, retaining existing software applications and allowing you to connect across your network to remote devices just as if they were attached locally.
Serial Port Tunnelling (individually configurable) allows serial cable replacement over any distance, no software required. You can access the device via TCP/IP sockets from any networked device like an Android tablet, PC or phone. On Windows OS TCP/IP sockets are handled by the Winsock API, this will differ on other OSs.
Ethernet LAN (RJ-45) Ports
- 1
Networking standards
- IEEE 802.3af
Ethernet interface type
- Fast Ethernet
Auto MDI/MDI-X
- Yes
Connectivity technology
- Wired
Internal
- No
LED indicators
- Yes
Power over Ethernet (PoE)
- Yes
Ethernet LAN Data Rates
- 10,100 Mbit/s
Operating relative humidity (H-H)
- 5 - 95%
Compliance Certificates
- CE, Federal Communications Commission (FCC), UL, UKCA
Dimensions (WxDxH)
- 102 x 100 x 27 mm
Input Voltage
- 5 - 30 V
Interface
- Ethernet
Package Length
- 13.5 cm
Export Control Classification Number (ECCN)
- 5A991.b
MPN
- ES-446
Number of products included
- 1 pc(s)
Product Colour
- Black
Package width
- 135 mm
Package depth
- 160 mm
Package height
- 49 mm
Harmonized System (HS) code
- 851762
Height
- 27 mm
Width
- 100 mm
Depth
- 101 mm
Weight
- 121 g
Power consumption (typical)
- 1.5 W
Ethernet LAN
- Yes
Package weight
- 234 g
Windows operating systems supported
- Windows 8 x64, Windows 8, Windows 10, Windows 7 x64, Windows 7, Windows 2000, Windows XP, Windows Vista x64, Windows Vista
Server operating systems supported
- Windows Server 2008, Windows Server 2008 x64, Windows Server 2012
Operating temperature (T-T)
- 32 - 131 °F
Brand
- Brainboxes
