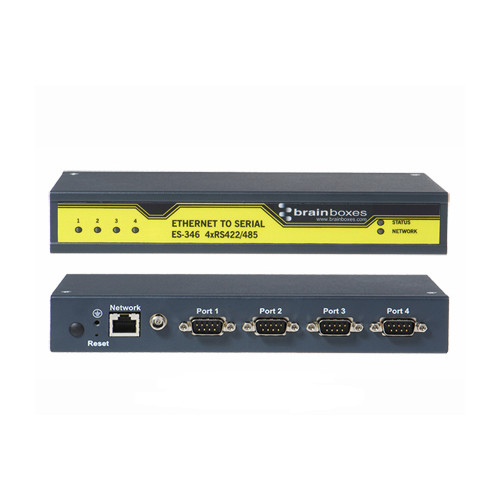

Ethernet to Serial device server providing access to four RS422/485 serial ports. Data transfer rates up to 1,000,000 baud rates, coupled with 1Mbit/s line drivers deliver uncompromising performance. Our ES range provides simple instant networked serial ports. RS485 - 1 twisted pair - half duplex configuration with autogating provides trouble free data transmission due to automatic control of data direction. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser. For Windows our in-house designed (32 bit and 64 bit) driver gives you local COM ports, retaining existing software applications and allowing you to connect across your network to remote devices just as if they were attached locally. You can access the device via TCP/IP sockets from any networked device like an Android tablet, PC or phone. Serial Port Tunnelling (individually configurable) allows serial cable replacement over any distance, no software required. On Windows OS TCP/IP sockets are handled by the Winsock API, this will differ on other OSs.
Serial Interface Type
- RS-422/485
Ethernet LAN Data Rates
- 10,100 Mbit/s
Ethernet LAN (RJ-45) Ports
- 1
Compliance Certificates
- CE, Federal Communications Commission (FCC), UKCA, UL
Flow Control Support
- Yes
Safety
- IP-30
Dimensions (WxDxH)
- 215 x 122.5 x 34 mm
USB 2.0 Ports Quantity
- 0
Input Voltage
- 5 - 30 V
Supported Network Protocols
- ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, HTTP, RFC2217
Cabling Technology
- 10/100Base-T(X)
Certification
- AEO WEEE RoHS EMC: CE TAA
Compatible Operating Systems
- Windows 7 / Server 2008 /Vista /XP 32 bit & 64 bit Windows 2000 OS’s & Linux
Baud Rate
- 1000 Kbit/s
Serial Ports Quantity
- 4
Export Control Classification Number (ECCN)
- 5A991.b
Data Bits
- 6, 7, 8, 5
Flow Control Type
- RTS/CTS, XON/XOFF
Parity Bit
- Odd, Even, Mark, No, Space
Stop Bits
- 1, 1.5, 2
MPN
- ES-346
Wi-Fi
- No
Product Colour
- Black
Package width
- 135 mm
Package depth
- 300 mm
Package height
- 80 mm
Country of origin
- United Kingdom
Height
- 34 mm
Width
- 123 mm
Depth
- 215 mm
Weight
- 700 g
Power consumption (typical)
- 1.45 W
Package weight
- 997 g
Windows operating systems supported
- Yes
Linux operating systems supported
- Yes
Server operating systems supported
- Windows Server 2008, Windows Server 2008 x64
Operating temperature (T-T)
- 0 - 55 °C
Operating relative humidity (H-H)
- 5 - 95%
Networking standards
- IEEE 802.3, IEEE 802.3u
LED indicators
- Yes
Storage temperature (T-T)
- -20 - 85 °C
Brand
- Brainboxes
