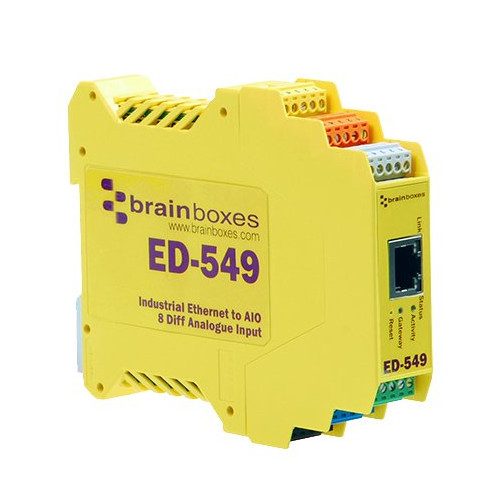

Ideal for all kinds of industry standard sensors and transducers. The ED-549 has 8 Analogue Inputs + RS485 Gateway. It is suitable for high-precision measurements of voltages and currents. Most parameters in the real world are measured using sensors generating analogue outputs. Brainboxes ED-549 takes these real world signals and turns them into data on your network. As well as the popular 0-10V and 4-20mA input devices, the inbuilt Programmable Gain Amplifier (PGA) allows full scale signals as small as ±75mV to be resolved to 12 bit accuracy across 8 analogue inputs. Each channel is individually configurable for voltage or current input with its own programmable gain.
Brainboxes supply a suite of APIs and sample code to communicate with the device using Microsoft .NET framework Visual Basic, C#, C++, Java, Javascript, PHP and more. The device can be configured and secured from a web browser. The device can be installed as a COM Port on a Windows PC to give complete backwards compatibility essential for legacy applications.
The ED product range is designed for harsh environments. Typical applications are control and switching of AC and DC motors, Fans, relay drivers, pumps, Voltage Regulators and Battery Chargers, LEDs and Bulbs, Air Conditioning, Heaters and Solenoids..
Brainboxes supply a suite of APIs and sample code to communicate with the device using Microsoft .NET framework Visual Basic, C#, C++, Java, Javascript, PHP and more. The device can be configured and secured from a web browser. The device can be installed as a COM Port on a Windows PC to give complete backwards compatibility essential for legacy applications.
The ED product range is designed for harsh environments. Typical applications are control and switching of AC and DC motors, Fans, relay drivers, pumps, Voltage Regulators and Battery Chargers, LEDs and Bulbs, Air Conditioning, Heaters and Solenoids..
Power Consumption
- 100 mA
Ethernet LAN Data Rates
- 10,100 Mbit/s
Ethernet LAN (RJ-45) Ports
- 1
DIN Rail Mounting
- Yes
Compliance Certificates
- CE, Federal Communications Commission (FCC), KCC, UKCA, UL
Dimensions (WxDxH)
- 128 x 102 x 23 mm
Supported Network Protocols
- ICMP, IP, TCP, DHCP, HTTP
Relative Humidity
- 5 - 95%
Serial Interface Type
- RS-485
Supported Protocols
- ICMP, IP, TCP, DHCP, HTTP
Mobile Operating Systems Supported
- Android, iOS
DC Input Voltage
- 5 - 30 V
Channels Quantity
- 8 channels
Maximum Input Voltage
- 35 V
Digital Input Channels Quality
- 0 channels
Digital Output Channels Quantity
- 0 channels
Module Type
- Analog
Signal Direction
- Input
Export Control Classification Number (ECCN)
- 5A991.b
Isolation
- 1.5 kV
MPN
- ED-549
Power consumption (typical)
- 2.5 W
Product Colour
- Yellow
Package width
- 135 mm
Package depth
- 160 mm
Package height
- 49 mm
Country of origin
- United Kingdom
Height
- 49 mm
Width
- 135 mm
Depth
- 160 mm
Weight
- 233 g
Power supply type
- PW-600/PW-650
Package weight
- 233 g
Windows operating systems supported
- Windows 10, Windows 2000, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows Vista, Windows Vista x64, Windows XP, Windows XP x64
Mac operating systems supported
- Yes
Linux operating systems supported
- Yes
Server operating systems supported
- Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012, Windows Server 2012 x64
Operating temperature (T-T)
- -30 - 80 °C
Operating relative humidity (H-H)
- 5 - 95%
Networking standards
- IEEE 802.3, IEEE 802.3u
Storage temperature (T-T)
- -40 - 85 °C
Brand
- Brainboxes
