KVM Console Extender for Digital Signage or Extending Video in Offices or Command Centers

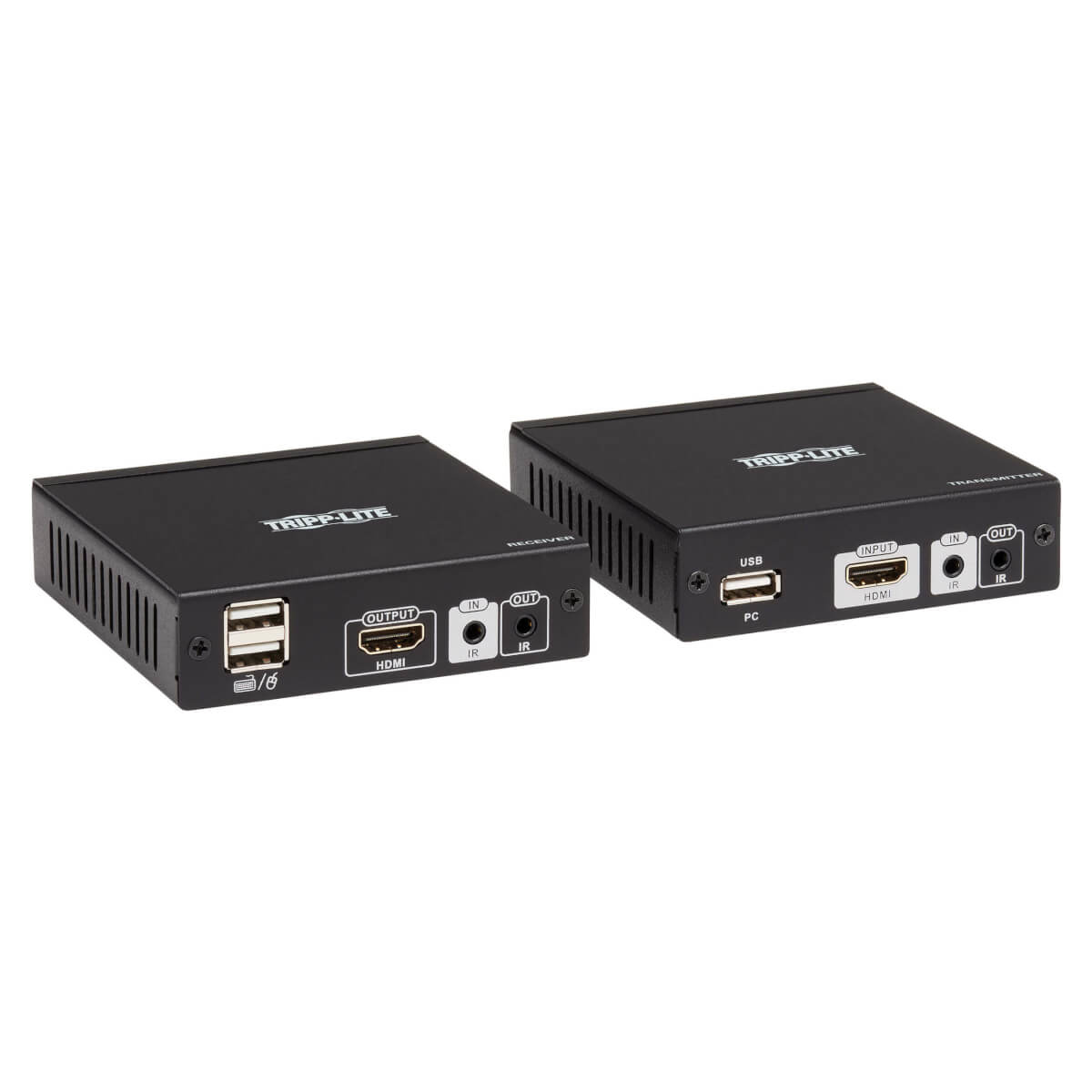

This extender kit includes a transmitter (local unit) and a receiver (remote unit) that work in tandem to extend and distribute HDMI audio/video, USB and IR (infrared) remote signals. Using Cat6 cabling (sold separately), the B013-HU-4K transmits 1080p video from a computer, Blu-ray player or other media center to an HDMI display or interactive whiteboard located up to 230 feet (70 meters) away. By connecting a keyboard and mouse to the receiver's dual USB ports, you can also control the source device from that same distance.
Recommended for Digital Signage or Extending Video Across Offices or Command Centers
Especially useful in control or security applications, the B013-HU-4K is ideal for command centers, data control centers, banks, governments, enterprise applications and especially any harsh environments, such as factories and warehouses. By extending audio/video signals, you can safely store your source computer in a cabinet or other enclosure, keeping it free of dust and blocking noise created by its fans, while watching the display in a different room or even a warehouse or factory floor.
Transmits Both 1080p and Uncompressed 4K Video and LPCM Audio with Zero Latency
This HDBaseT kit extends 1080p video resolutions up to 230 feet, as well as 4K video (3840 x 2160 at 30 Hz) up to 130 feet (40 meters) with 24-bit Deep Color (8 bits per channel). It also supports uncompressed LPCM, compressed DTS-HD and compressed Dolby TrueHD audio with no signal loss or added latency.
IR Pass-Through Technology Lets You Control the Video from the Next Room
Full bi-directional IR extension lets you control the source device with its remote (play, pause, fast forward, etc.), while you're standing near the receiver in another room. Video and audio will play without stalling or delayed data transmission. Make sure the transmitter's IR bulb is within sight of the source and the receiver's IR bulb is in range of the source's remote.
Plug-and-Play Operation for Quick Setup and Immediate Use
The included transmitter and receiver units work right out of the box with no software required. Because they connect using existing network infrastructure, you avoid the hassle and expense of running new Cat5e/6 cables. LED indicators alert you of power and connection status of both units at a glance.
This extender kit includes a transmitter (local unit) and a receiver (remote unit) that work in tandem to extend and distribute HDMI audio/video, USB and IR (infrared) remote signals. Using Cat6 cabling (sold separately), the B013-HU-4K transmits 1080p video from a computer, Blu-ray player or other media center to an HDMI display or interactive whiteboard located up to 230 feet (70 meters) away. By connecting a keyboard and mouse to the receiver's dual USB ports, you can also control the source device from that same distance.
Recommended for Digital Signage or Extending Video Across Offices or Command Centers
Especially useful in control or security applications, the B013-HU-4K is ideal for command centers, data control centers, banks, governments, enterprise applications and especially any harsh environments, such as factories and warehouses. By extending audio/video signals, you can safely store your source computer in a cabinet or other enclosure, keeping it free of dust and blocking noise created by its fans, while watching the display in a different room or even a warehouse or factory floor.
Transmits Both 1080p and Uncompressed 4K Video and LPCM Audio with Zero Latency
This HDBaseT kit extends 1080p video resolutions up to 230 feet, as well as 4K video (3840 x 2160 at 30 Hz) up to 130 feet (40 meters) with 24-bit Deep Color (8 bits per channel). It also supports uncompressed LPCM, compressed DTS-HD and compressed Dolby TrueHD audio with no signal loss or added latency.
IR Pass-Through Technology Lets You Control the Video from the Next Room
Full bi-directional IR extension lets you control the source device with its remote (play, pause, fast forward, etc.), while you're standing near the receiver in another room. Video and audio will play without stalling or delayed data transmission. Make sure the transmitter's IR bulb is within sight of the source and the receiver's IR bulb is in range of the source's remote.
Plug-and-Play Operation for Quick Setup and Immediate Use
The included transmitter and receiver units work right out of the box with no software required. Because they connect using existing network infrastructure, you avoid the hassle and expense of running new Cat5e/6 cables. LED indicators alert you of power and connection status of both units at a glance.
Transmitter Local Keyboard/Mouse Port Type
- USB
AC Input Frequency
- 50 - 60 Hz
Input Current
- 0.3 A
Cable Types Supported
- Cat5, Cat6
Maximum Digital Resolution
- 3840 x 2160 pixels
Colour Depth
- 24 bit
Included Power Plug Types
- AU, EU, NA, UK
USB Port Type
- USB Type-A
PC Audio Out
- Yes
AC Input Voltage
- 100 - 240 V
Transmitter Video Port Type
- HDMI
Receiver Local Keyboard/Mouse Port Type
- USB
Receiver Local Video Port Type
- HDMI
RJ-45 Ports Quantity (Receiver)
- 1
RJ-45 Ports Quantity (Transmitter)
- 1
PC Audio In
- Yes
Master (Outer) Case GTIN (EAN/UPC)
- 10037332241167
MPN
- B013-HU-4K
Operating temperature (T-T)
- 0 - 50 °C
Material
- Aluminium
Product Colour
- Black
Package width
- 240 mm
Package depth
- 176 mm
Package height
- 80 mm
Country of origin
- China
Harmonized System (HS) code
- 84733080
Package weight
- 1.07 kg
Operating relative humidity (H-H)
- 0 - 90%
Cables included
- IR, USB
Connectivity technology
- Wired
Maximum transfer distance
- 70 m
LED indicators
- Yes
Storage temperature (T-T)
- -10 - 70 °C
Storage relative humidity (H-H)
- 0 - 90%
Certification
- CE, FCC, RoHS, REACH
Brand
- Tripp Lite
