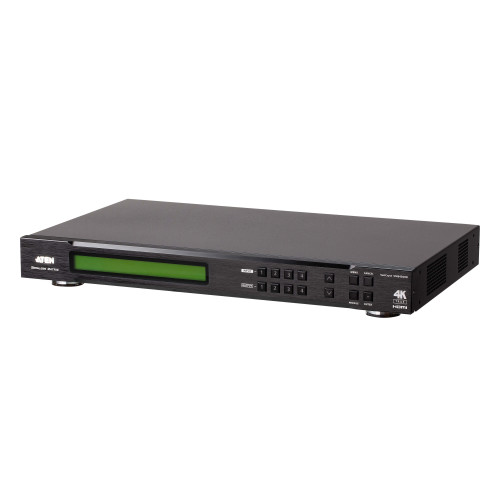

True 4K Pro AV solutions with High Dynamic Range (HDR) technology is the trend of high-definition video that delivers the ultimate visual experience with exceptional sharp and vibrant video quality. ATEN's VM6404HB True 4K HDMI Matrix Switch with Scaler is compatible with the latest True 4K video resolutions of 4096 x 2160 / 3840 x 2160@60Hz (4:4:4) and HDR, guaranteeing crystal-clear images across four displays.
1x VM6404HB 4 x 4 True 4K HDMI Matrix Switch with Scaler
1x LIN2-418K-E12G Power Cord
1x 2XRT-0106G IR Remote Control
1x 2XRT-0003G IR Receiver
1x KC06-0012-B07G Mounting Kit
1x User Instructions
1x VM6404HB 4 x 4 True 4K HDMI Matrix Switch with Scaler
1x LIN2-418K-E12G Power Cord
1x 2XRT-0106G IR Remote Control
1x 2XRT-0003G IR Receiver
1x KC06-0012-B07G Mounting Kit
1x User Instructions
Remote (IR) Input
- 1
AC Input Voltage
- 100 - 240 V
AC Input Frequency
- 50 - 60 Hz
Maximum Resolution
- 4096 x 2160 pixels
3D
- Yes
Remote Control Included
- Yes
HDCP
- Yes
Input Current
- 1 A
HDCP Version
- 2.2
Rack Capacity
- 1U
On/Off Switch
- Yes
RS-232 Ports
- 1
Ethernet LAN (RJ-45) Ports
- 1
Rack Mount Kit
- Yes
Heat Dissipation (Max)
- 205 BTU/h
HDMI Input Ports Quantity
- 4
HDMI Output Ports Quantity
- 4
Housing Colour
- Black
Maximum Pixel Clock
- 600 MHz
Extended Display Identification Data (EDID)
- Yes
IR Receiver Included
- Yes
Supported Resolutions
- 4096 x 2160, 3840 x 2160
MPN
- VM6404HB
Heat Dissipation
- 202 BTU/h
Housing material
- Metal
Package width
- 338 mm
Package depth
- 515 mm
Package height
- 155 mm
Height
- 44 mm
Width
- 432.4 mm
Depth
- 262.3 mm
Weight
- 3.82 kg
Data transfer rate
- 18 Gbit/s
Built-in display
- Yes
Control type
- Buttons
Power consumption (typical)
- 43.8 W
Package weight
- 5.2 kg
Operating temperature (T-T)
- 0 - 40 °C
Operating relative humidity (H-H)
- 0 - 80%
Cables included
- AC
LED indicators
- Yes
Storage temperature (T-T)
- -20 - 60 °C
Storage relative humidity (H-H)
- 0 - 80%
Rack Mounting
- Yes
Brand
- ATEN
Product Type
- Scaling matrix switcher
