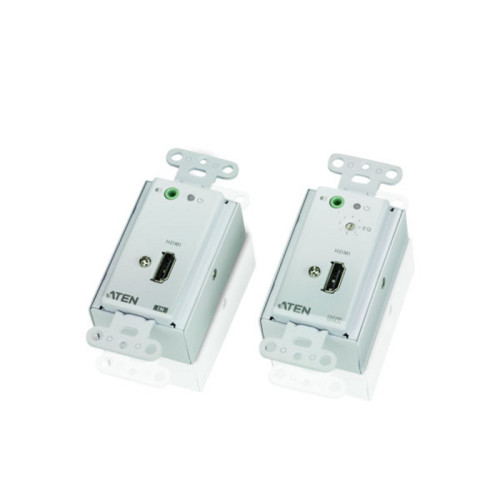

The VE806 HDMI Over Cat 5 Extender Wall Plate extends HDMI and audio signals up to 60m using Cat 5e cable. It supports popular wide screen formats and ensures excellent video quality over long distance transmissions. The VE806 combination can further extend the distance or multiply sources/displays.
The VE806 can be powered at either the Transmitter or Receiver side, and uses a second Cat 5e cable to transmit the power signal. The VE806’s compact wall plate design does away with bulky cables and allows a neat and convenient installation. It is an ideal solution for function rooms, museums and any environment that requires equipment or cabling to be kept hidden from public view.
The VE806 can be powered at either the Transmitter or Receiver side, and uses a second Cat 5e cable to transmit the power signal. The VE806’s compact wall plate design does away with bulky cables and allows a neat and convenient installation. It is an ideal solution for function rooms, museums and any environment that requires equipment or cabling to be kept hidden from public view.
Operating temperature (T-T)
- 0 - 50 °C
MPN
- VE806
Operating Voltage
- 9 V
Supported Video Modes
- 1080i, 1080p
Maximum Resolution
- 1920 x 1080 pixels
Storage temperature (T-T)
- -20 - 60 °C
LED indicators
- Yes
Connectivity technology
- Wired
Operating relative humidity (H-H)
- 0 - 80%
Power consumption (typical)
- 2.9 W
Weight
- 170 g
Depth
- 104 mm
Width
- 44 mm
Height
- 40 mm
Quantity per pack
- 2 pc(s)
Product Colour
- White
Brand
- ATEN
