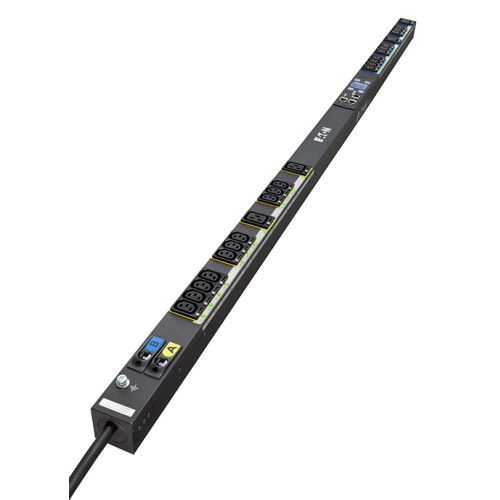

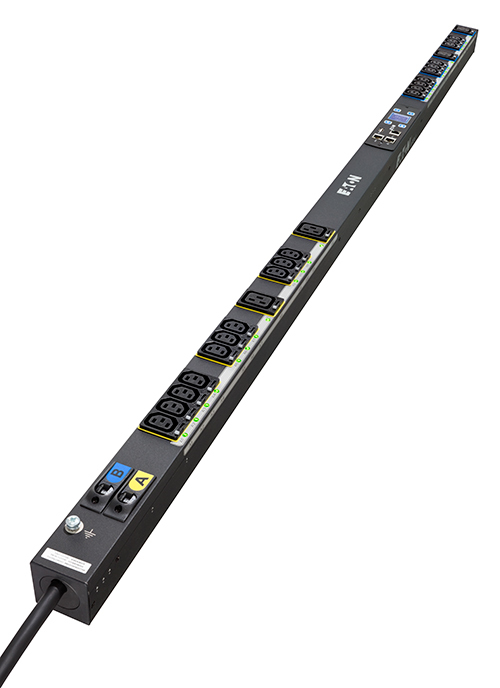

Eaton EMAB33 power distribution unit (PDU) 24 AC outlet(s) 0U Black

SKU: EAPDU095
MPN: EMAB33
Weight: 0.01kg
£1,838.00 Ex VAT
Manufacturer Brand Image
ePDU G3 Managed, 22kW, 230V In, IEC 60309 (32A, Three-phase) In, 18x C13 Out, 6x C19 Out
Switch and meter outlets & IT equipment across A and B feed: Combines both Switched and Metered Outlet functionality together in 1 ePDU\nePDU G3 Managed models allow complete lights-out control and metering of devices including devices powered across multiple ePDUs. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.
PDU Types
  • Managed
Form Factor
  • Rackmount
Rack Capacity
  • 0U
Firmware Upgradeable
  • Yes
Rack Mount Kit
  • Yes
AC Outlet Types
  • C13 coupler, C19 coupler
Maximum Current
  • 32 A
Maximum Power
  • 22000 W
Nominal Input Voltage
  • 400 V
Display
  • LCD
Power Plug
  • IEC 60309
Cable Colour
  • Black
AC Outlets Quantity
  • 24 AC outlet(s)
Nominal Output Voltage
  • 230 V
Output Connections
  • 18 x C13 & 6 x C19
Maximum Input Current Per Phase
  • 32 A
Firmware Upgradeable Via
  • Network, USB
Operating temperature (T-T)
  • 0 - 60 °C
Mounting
  • Vertical
Product Colour
  • Black
Height
  • 52 mm
Width
  • 65 mm
Depth
  • 1829 mm
Weight
  • 6.6 kg
Cable length
  • 3 m
Package weight
  • 9 kg
Cables included
  • LAN (RJ-45)
LED indicators
  • Yes
Rack Mounting
  • Yes
Ethernet LAN (RJ-45) Ports
  • 1
Compliance Certificates
  • RoHS
Management Protocols
  • SNMP, Telnet
AC Input Frequency
  • 50 Hz
Brand
  • Eaton
