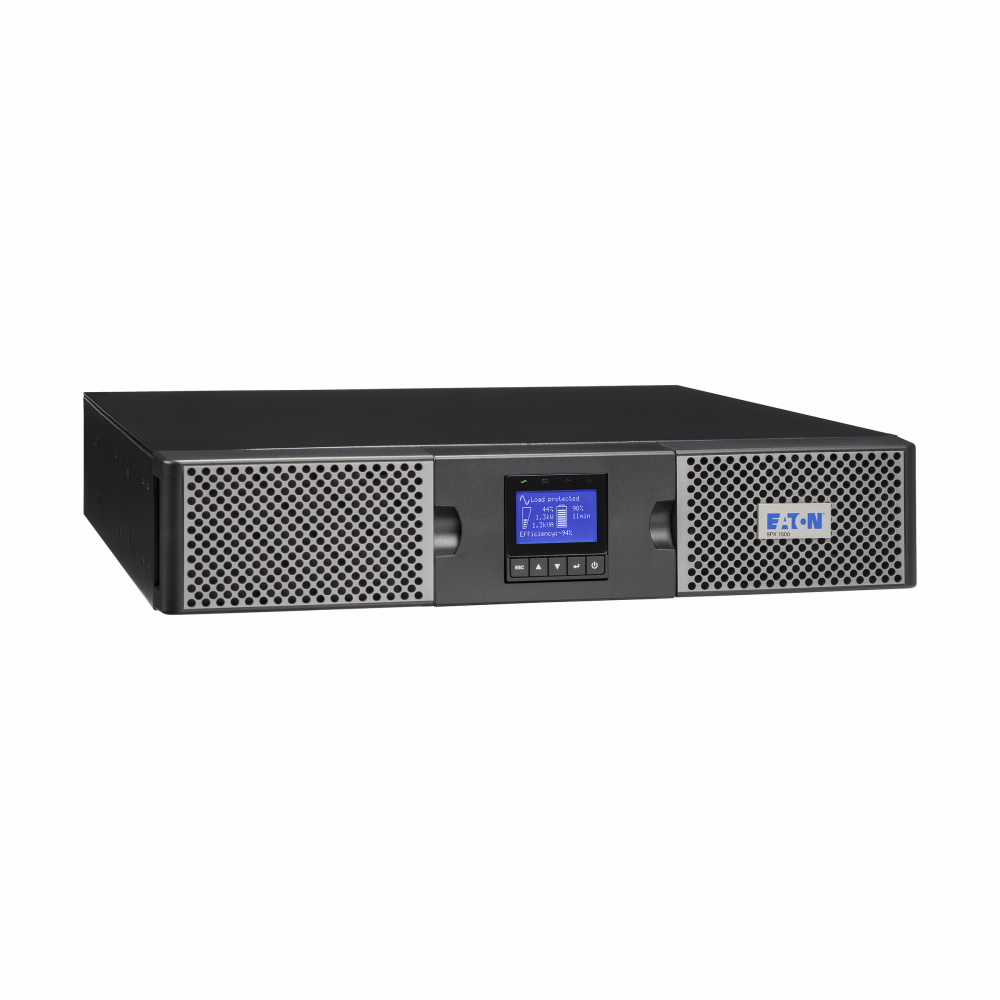

The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
Battery Voltage
- 12 V
Display Type
- LCD
USB Port Type
- USB Type-B
Waveform
- Sine
Rack Mount Kit
- Yes
AC Outlet Types
- C13 coupler
Power Plug
- C14 coupler
AC Outlets Quantity
- 8 AC outlet(s)
Number of Batteries Supported
- 4
Serial Ports Quantity
- 1
Output Power
- 1000 W
Power Protection Features
- Overdischarge
Quick Installation Guide
- Yes
ECO Mode
- Yes
Efficiency
- 91.5%
Input Operation Voltage (Max)
- 276 V
Input Operation Voltage (Min)
- 100 V
Serial Interface
- Yes
Typical Backup Time at Full Load
- 6 min
Efficiency (ECO Mode)
- 97.5%
UPS Topology
- Double-conversion (Online)
Output Operation Voltage (Max)
- 240 V
Output Operation Voltage (Min)
- 200 V
Certification
- CISPR22 B CSA 22.2 TUV cULus FCC 15 / B EAC UL 1778 IEC/EN 62040-1 IEC/EN 62040-2
Product Colour
- Black, Silver
Height
- 240 mm
Width
- 550 mm
Depth
- 580 mm
Weight
- 17.9 kg
USB port
- Yes
Operating temperature (T-T)
- 0 - 40 °C
Operating relative humidity (H-H)
- 0 - 96%
Cables included
- Input power cable, Serial, USB cable
Operating altitude
- 0 - 3000 m
Noise Level
- 35 dB
Compliance Certificates
- CE
USB 2.0 Ports Quantity
- 1
Sustainability Certificates
- ENERGY STAR
Battery Technology
- Sealed Lead Acid (VRLA)
Sustainability Compliance
- Yes
Battery Capacity
- 7 Ah
Input Frequency
- 40/70 Hz
Serial Interface Type
- RS-232
Form Factor
- Rackmount/Tower
Brand
- Eaton
