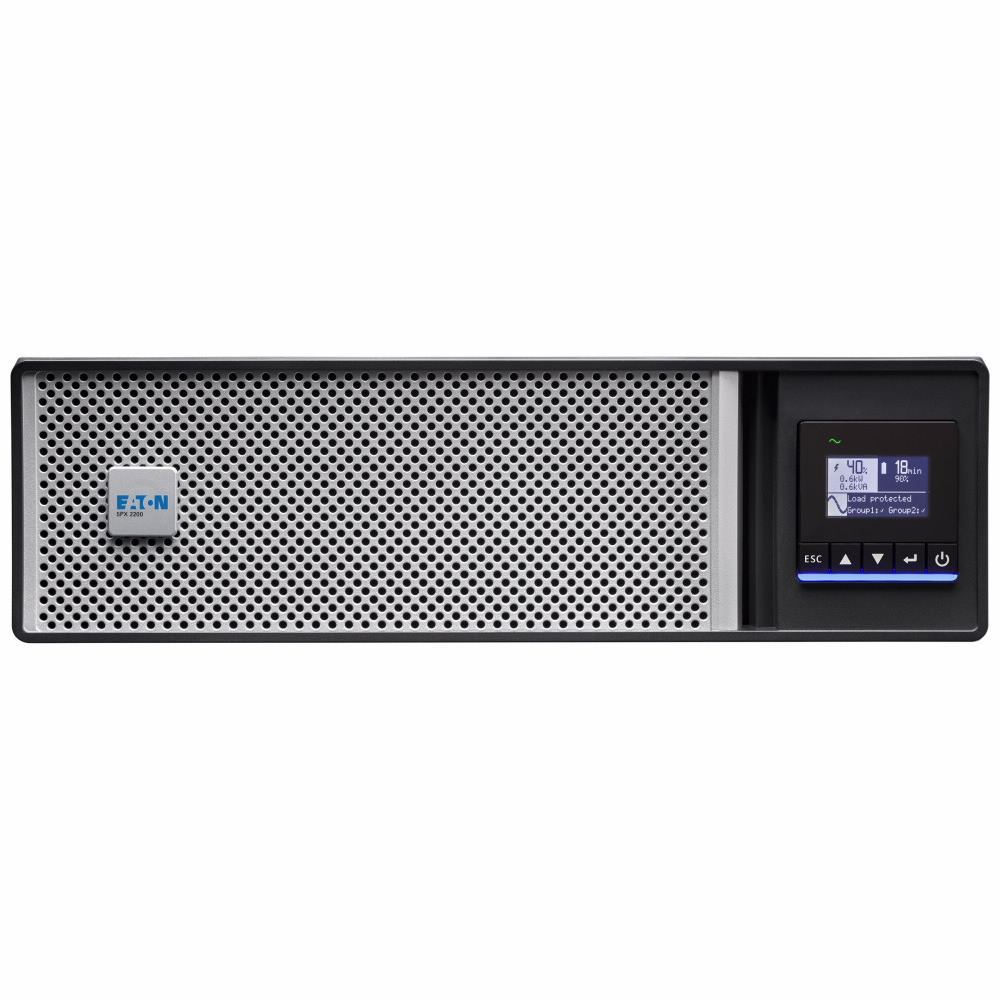

Eaton 5PX2200IRT3UG2BS. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 2200 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery voltage: 12 V. Form factor: Rackmount/Tower, Product colour: Black, Silver, Cable length: 1.8 m. Compliance certificates: CE, REACH, RoHS, Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA 22.2 cTUVus EAC Cm UKCA Ukr
Serial Interface
- Yes
Waveform
- Sine
Rack Mount Kit
- Yes
AC Outlet Types
- C13 coupler, C19 coupler
Power Plug
- C20 coupler
AC Outlets Quantity
- 10 AC outlet(s)
Number of Batteries Supported
- 6
Serial Ports Quantity
- 1
Output Power
- 2200 W
Power Protection Features
- Overdischarge
Battery Voltage
- 12 V
Input Operation Voltage (Max)
- 294 V
Input Operation Voltage (Min)
- 150 V
USB Port Type
- USB Type-B
Typical Backup Time at Full Load
- 6 min
UPS Topology
- Line-Interactive
Output Operation Voltage (Max)
- 240 V
Output Operation Voltage (Min)
- 200 V
Number of Input Phases
- 1
Number of Output Phases
- 1
Output Frequency
- 50/60 Hz
Output Power Capacity
- 2.2 kVA
Automatic Voltage Regulation (AVR)
- Yes
Automatic Battery Test
- Yes
Power Factor
- 1
Noise Level
- 40 dB
Product Colour
- Black, Silver
Height
- 290 mm
Width
- 588 mm
Depth
- 770 mm
Weight
- 28.7 kg
Cable length
- 1.8 m
USB port
- Yes
Operating temperature (T-T)
- 0 - 40 °C
Operating relative humidity (H-H)
- 0 - 90%
Cables included
- Input power cable, Serial, USB cable
Operating altitude
- 0 - 3000 m
Certification
- IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA 22.2 cTUVus EAC Cm UKCA Ukr
Compliance Certificates
- CE, REACH, RoHS
USB 2.0 Ports Quantity
- 1
Sustainability Certificates
- ENERGY STAR
Battery Technology
- Sealed Lead Acid (VRLA)
Sustainability Compliance
- Yes
Battery Capacity
- 7 Ah
Input Frequency
- 47/70 Hz
Serial Interface Type
- RS-232
Form Factor
- Rackmount/Tower
Quick Installation Guide
- Yes
Display Type
- LCD
Brand
- Eaton
