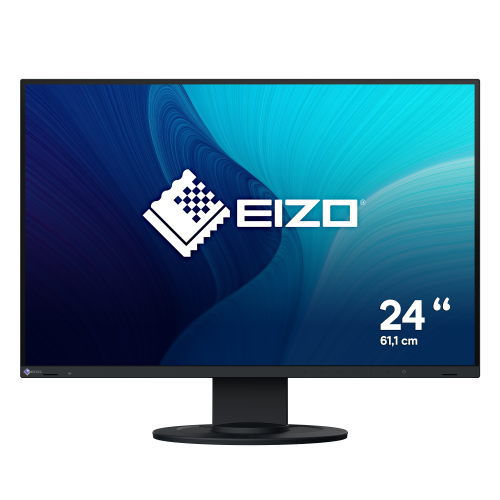

The FlexScan EV2410R impresses as a flexible all-rounder and is ideal for the classic office workstation. Energy-saving, eyefriendly and ergonomic, it is an indispensable helper on any desk and enables efficient working. Equipped with an IPS panel, it has a horizontal and vertical viewing angle of 178° and a resolution of 1920 x 1200 pixels. The low-reflection surface, brightness and contrast ensure a detailed and excellent image reproduction. Auto EcoView automatically adjusts the brightness to the ambient light to avoid glare and protect the eyes. Four inputs for digital and analog signals, a USB hub and headphone and audio connections ensure versatile connectivity. Thanks to the thin housing edge, the monitor has a very compact appearance and is particularly suitable for multi-screen operation. In addition to the on-screen menu, the accompanying Screen InStyle software enables easy operation via computer or network.
Panel mounting interface
- 100 x 100 mm
Height adjustment
- Yes
Tilt adjustment
- Yes
Tilt angle range
- -5 - 35°
Swivelling
- Yes
Product Colour
- Black
Harmonized System (HS) code
- 85285210
Swivel angle range
- 0 - 344°
VESA mounting
- Yes
Warranty period
- 7 year(s)
Pivot angle
- -90 - 90°
Feet colour
- Black
Touchscreen
- No
Power consumption (typical)
- 8 W
Power consumption (standby)
- 0.5 W
Power consumption (off)
- 0 W
Operating temperature (T-T)
- 5 - 35 °C
Operating relative humidity (H-H)
- 20 - 80%
Cables included
- DisplayPort, USB Type-A to USB Type-B, AC
Storage temperature (T-T)
- -20 - 60 °C
Storage relative humidity (H-H)
- 10 - 90%
Certification
- CE, UKCA, CB, TÃœV/GS, TÃœV/Ergonomics (including ISO 9241-307), TCO Certified Generation 10, TÃœV/Low Blue Light Content, TÃœV/Flicker Free, RCM, cTÃœVus, FCC-B, CAN ICES-3 (B), TÃœV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC
Power Consumption (max)
- 54 W
Compliance Certificates
- CCC, CE, China RoHS, Federal Communications Commission (FCC), PSE, RoHS, TÃœV mark, UKCA, VCCI, WEEE
AC Input Voltage
- 100 - 240 V
AC Input Frequency
- 50/60 Hz
Quick Start Guide
- Yes
Sustainability Certificates
- ENERGY STAR, EPEAT Climate +, EPEAT Gold, TCO
Cable Lock Slot
- Yes
Display Diagonal
- 61.2 cm (24.1")
Display Diagonal (metric)
- 61.1 cm
Display Resolution
- 1920 x 1200 pixels
Sustainability Compliance
- Yes
Pivot
- Yes
Native Aspect Ratio
- 16:10
HDM Ports Quantity
- 1
VGA (D-Sub) Ports Quantity
- 1
Headphone Outputs
- 1
HD Type
- WUXGA
Supported Graphics Resolutions
- 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Built-In Speaker(s)
- Yes
Number of Speakers
- 2
RMS Rated Power
- 2 W
Response Time
- 5 ms
Market Positioning
- Office
Display Technology
- LCD
Contrast Ratio (Typical)
- 1300:1
Colour Gamut Standard
- sRGB
Panel Type
- IPS
DVI Port
- Yes
Built-in USB Hub
- Yes
USB Hub Version
- 3.2 Gen 1 (3.1 Gen 1)
HDCP
- Yes
Maximum Refresh Rate
- 60 Hz
HDMI
- Yes
HDCP Version
- 1.4
DisplayPorts Quantity
- 1
AMD FreeSync
- No
Backlight Type
- W-LED
Depth (With Stand)
- 233 mm
Depth (Without Stand)
- 57 mm
Display Brightness (Typical)
- 350 cd/m²
Energy Consumption (SDR) Per 1000 Hours
- 8 kWh
Energy Efficiency Class (SDR)
- B
Energy Efficiency Scale
- A to G
Flicker-Free Technology
- Yes
Headphone Out
- Yes
Height (With Stand)
- 358.4 mm
Height (Without Stand)
- 345.2 mm
Low Blue Light Technology
- Yes
NVIDIA G-SYNC
- No
On Screen Display (OSD) Languages
- German, English, Spanish, French, Italian
On Screen Display (OSD)
- Yes
Pixel Density
- 94 ppi
Pixel Pitch
- 0.27 x 0.27 mm
Screen Shape
- Flat
Stand Included
- Yes
USB Type-A Downstream Ports Quantity
- 4
Viewable Size, Horizontal
- 51.8 cm
Viewable Size, Vertical
- 32.4 cm
Weight (With Stand)
- 6 kg
Width (With Stand)
- 531 mm
Width (Without Stand)
- 531 mm
Display Number of Colours
- 16.7 million colours
Horizontal Scan Range
- 31 - 76 kHz
Number of Upstream Ports
- 1
USB Upstream Port Type
- USB Type-B
Vertical Scan Range
- 59 - 61 Hz
Viewing Angle, Horizontal
- 178°
Viewing Angle, Vertical
- 178°
Weight (Without Stand)
- 3.9 kg
Number of USB Type-B Upstream Ports Quantity
- 1
Anti-Glare Screen
- Yes
Built-in Camera
- No
LED Backlight
- Yes
DVI-D Ports Quantity
- 1
MPN
- EV2410R-BK
Automatic Brightness Control
- Yes
Look-up table (LUT) bit depth
- 10
Adjustable Height (max)
- 13 cm
Response time measurement type
- GTG (Gray to Gray)
Brand
- EIZO
