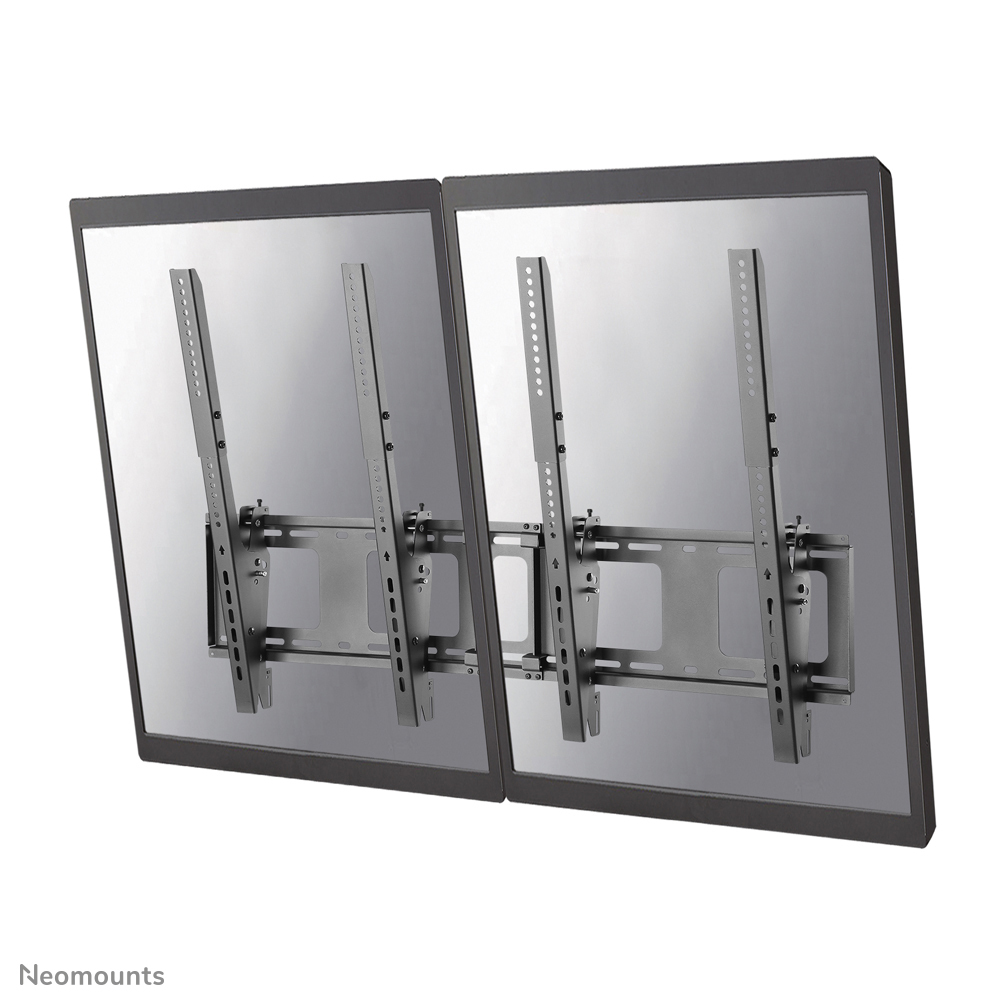

The Neomounts menu board wall mount (vertical mounting), model NS-WMB200PBLACK is a tiltable wall mount for two flat screens up to 52" (132 cm). This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Neomounts tilt (0°/-5°/-10°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. Depth of this mount is 7,8 centimetres.
Neomounts NS-WMB200PBLACK is suitable for 2 screens up to 52" (132 cm). The weight capacity of this product is 50 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 200x200 to 400x600 mm (vertical mounting).
All installation material is included with the product.
Neomounts NS-WMB200PBLACK is suitable for 2 screens up to 52" (132 cm). The weight capacity of this product is 50 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 200x200 to 400x600 mm (vertical mounting).
All installation material is included with the product.
Width
- 1100 mm
Package width
- 250 mm
Package depth
- 165 mm
Package height
- 540 mm
Country of origin
- China
Harmonized System (HS) code
- 7326909890
Package net weight
- 10.5 kg
Height
- 68 mm
Distance to the wall (max)
- 7.8 cm
Housing material
- Steel
Width adjustment
- 110 cm
Width adjustment range
- 0 - 1100 mm
Distance to the wall (min)
- 7.8 cm
Tilt angle
- 10°
Weight
- 9.16 kg
Package weight
- 10.5 kg
MPN
- NS-WMB200PBLACK
Product Colour
- Black
Angle of rotation
- 6°
Swivel angle
- 6°
Tilt angle range
- 0 - 10°
Tilt adjustment
- Yes
Height adjustment range
- 0 - 680 mm
Height adjustment
- 68 cm
Panel mounting interface
- 200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,400 x 600,600 x 300,600 x 200,600 x 400
Maximum weight capacity (per display)
- 50 kg
Number of displays supported
- 2
Minimum screen size
- 101.6 cm (40")
Mounting type
- Wall
Maximum screen size
- 132.1 cm (52")
Maximum weight capacity
- 50 kg
Cable Management
- Yes
Brand
- neomounts
